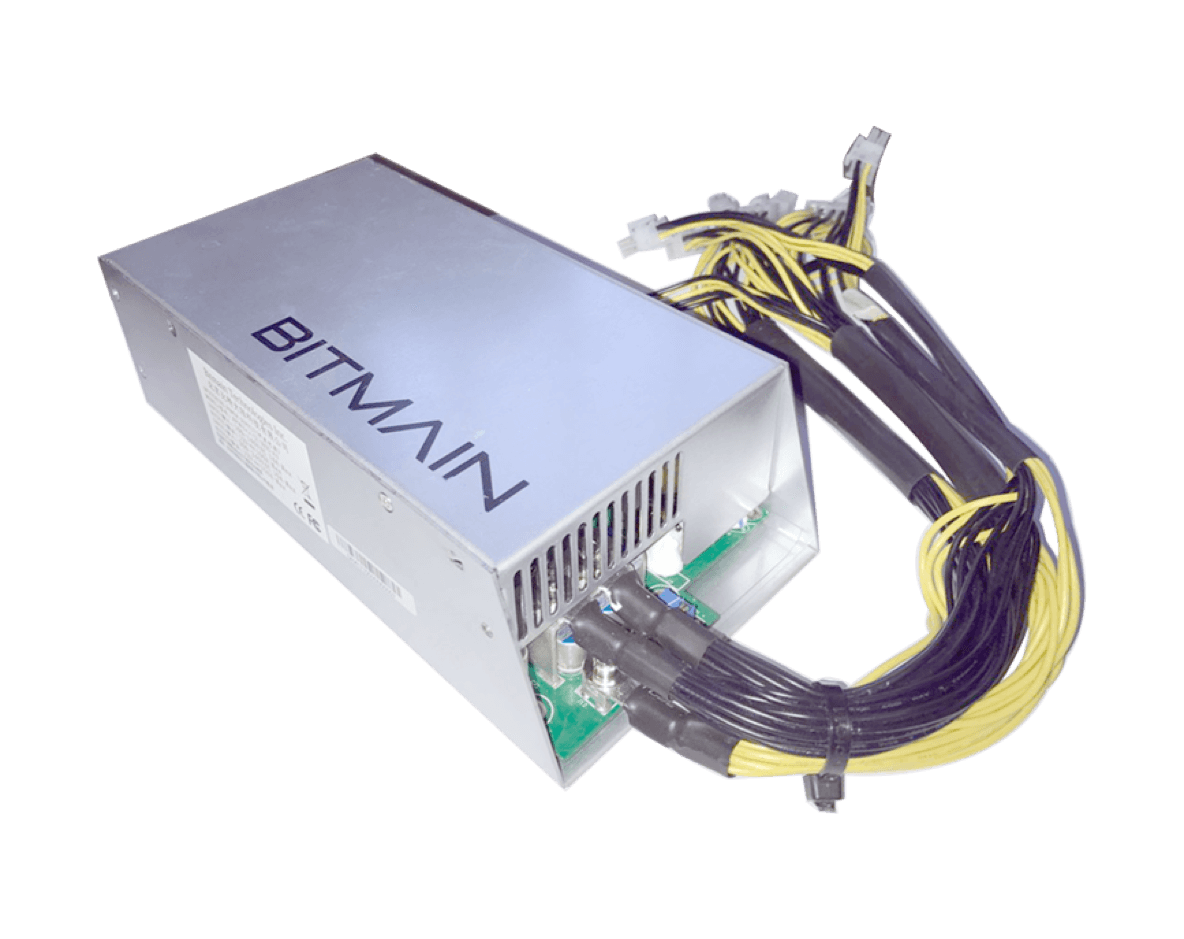

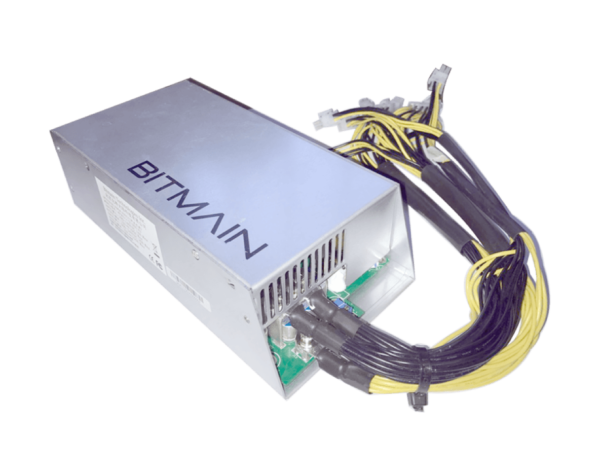

APW3++ 1200/1600W 110/220V PSU ,SHIPS NOW!

$50.00

Out of stock

SKU: AK-PSU-01 Category:

Description

Specifications

Output

DC Voltage

12.15V

Rated Current
(220V input)

133A

Rated Current
(110V input)

100A

Rated Power
(220V input)

1600W

Rated Power
(110V input)

1200W

Ripple & Noise

<1%

Voltage Regulation

<2%

Source Regulation

<1%

Load Regulation

<1%

Setup, Rise Time

<2S

Power off Protection Trip Time

>9mS

Interface Type  5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)

Noise Level

 <43DB

Input

Voltage Range

100-240V AC

Starting Voltage

95-105V AC

Frequency Range

47-63Hz

Power Factor

>0.95 (full load)

Leakage Current

<1.5mA (220V 50Hz)

Protection

Low-voltage Input

80-89V AC

Output Short Circuit

Yes

Output Overcurrent

134-185A max.

Overheat Protection

Yes

Environment Conditions

Operating Temperature

-20°C – 50°C

Operating Humidity

20% – 90% relative humidity (non-condensing)

Structure

Dimensions

220mm*108mm*62mm

Cooling

Fan

Forced-air cooling
