Product description:
Universal APW9 and APW9+ are on selling…
Notice: Due to the large amount of orders in the factory and the shortage of supply, we need to arrange the supply reasonably. We will ship the goods in the order of the order time. The customers who placed the order please wait patiently.
Notice: This product is only for APW9 power supply, if you are looking for APW9+ power supply, please click the link below.
Universal APW9+ power supply

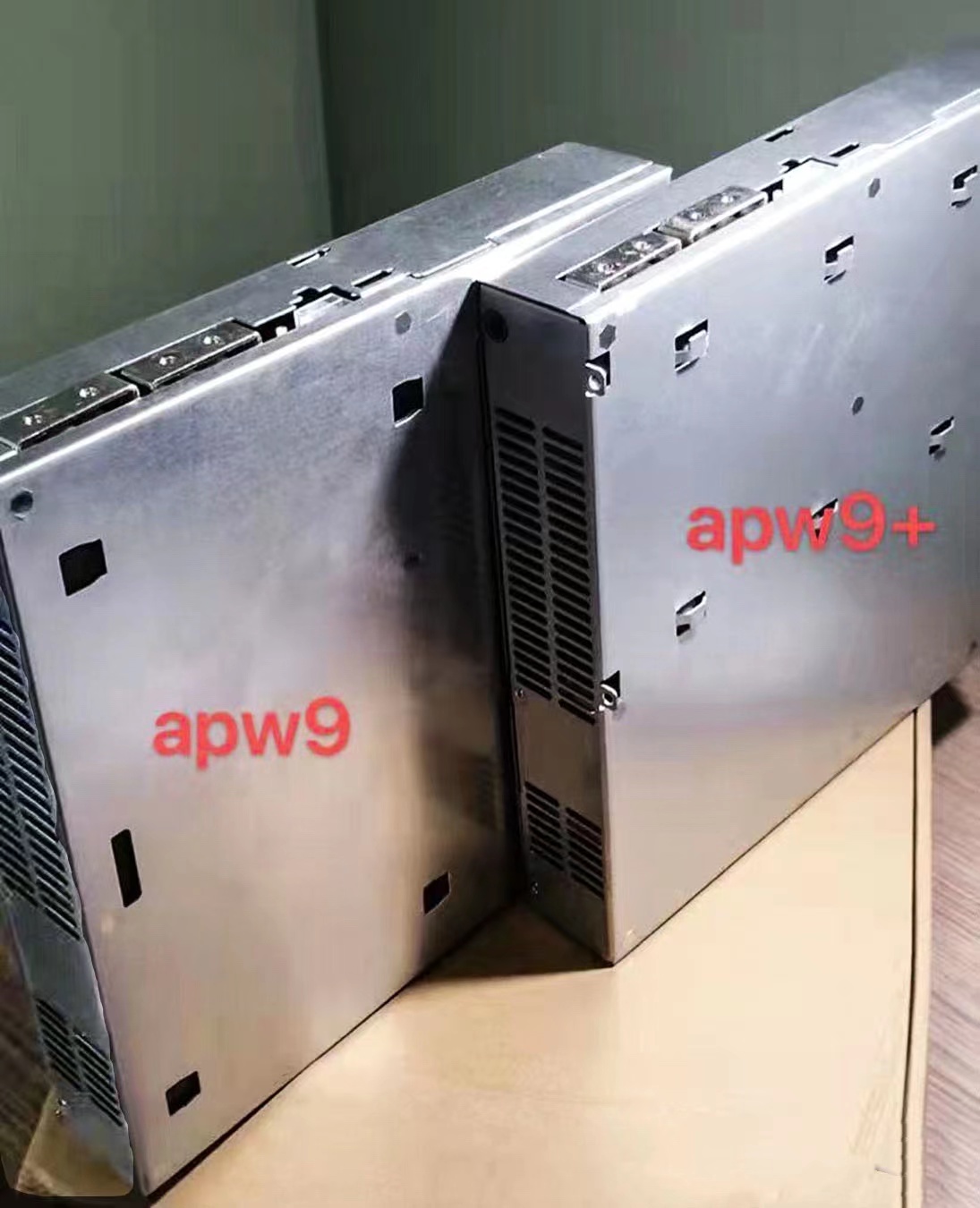

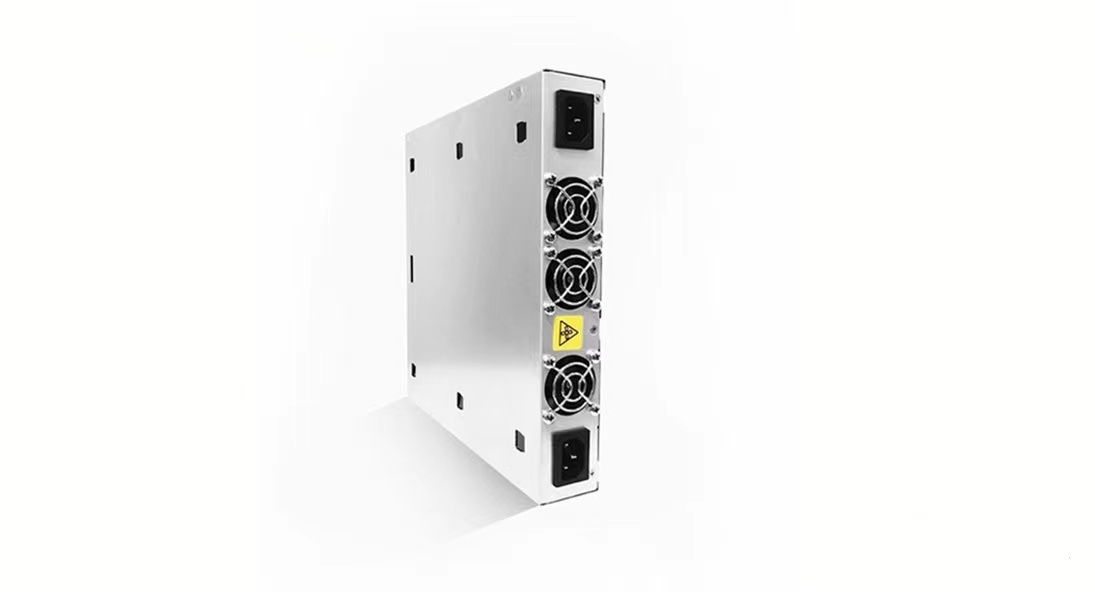

APW9 and APW9+ power supply unit, suitable for Antminer S17, S17 Pro, T17, S17+, S17E, T17+ and T17E.
Suitable for Antminer APW9 and AWP9 + power supply unit PSU.
APW9+ 14.5V-21V
APW9 14.5V-21V EMC
High-quality universal APW9 and APW9+ power supplies are now being wholesale.
We cooperate with Antminer accessory manufacturers, with sufficient supply and quality assurance. APW9 is suitable for Antminer S17, S17Pro, and T17, while APW9+ is suitable for Antminer S17+, S17E, T17+, and T17E. APW9 and APW9+ PSU come from power supply factory and without logo. According to the current market analysis, the market demand for APW9 and APW9+ is huge and strictly controlled, and the supply of APW9 and APW9+ on the market is short. Therefore, our company wholesale these high-quality universal APW9 and APW9+ at a preferential price.
If you are interested in APW9 power supply units, please do not hesitate to consult our sales manager for details.
APW9 packing parameters:
Notice: 5 APW9 power supplies are packed in 1 carton
Net weight of power supplies (5 units): 18.8 KG
Gross weight of the whole carton (including 5 power supplies): 19.7 KG
Carton size: 600*330*315 MM
| APW9+ No logo |
| OUT1 |
DC Voltage |
14.5V-21V |
| Rated Current(220V input) |
170A |
| Rated Power (220V input) |
3600W |
| Ripple & Noise |
<1% |
| Source Regulation |
<1% |
| Load Regulation |
<1% |
| Setup, Rise Time |
<2S |
| Power off Protection Trip Time |
>10mS |
| OUT2 |
DC Voltage |
12.3V |
| Rated Current(220V input) |
12A |
| Ripple & Noise |
<1% |
| Voltage Accuracy |
12.2V-12.4V |
| Source Regulation |
<1% |
| Load Regulation |
<1% |
| Setup, Rise Time |
<2S |
| Power off Protection Trip Time |
>10mS |
| Input |
Voltage Range |
200-240V AC |
| Frequency Range |
47-63Hz |
| Power Factor |
>0.99(full load) |
| Leakage Current |
<1.5mA（220V 50Hz） |
| Protection |
Low-voltage Input |
80-89V AC |
| Output Short Circuit |
Yes |
| Output Overcurrent |
180-230A |
| Overheat Protection |
Yes |
| Environment |
Operating Temperature |
-20-50℃ |
| Operating Humidity |
20%-90%RH(non-condensing) |
| Altitude |
< 2000m |
| Structure |
Dimensions |
249*250*48.5mm |
| Weight |
3.2kg |
| Cooling Mode |
force-air cooling |
| Noise |
67dBA |
